Annual Proof Load 1.2 x WLL (AS3850)

Markings on Clutch..

Cast Locking Ring:  SLR, CE, A-Z, Rating

Forged Ring:  SLR, CE, WLL, Factory Batch No.

Box Quantities:  2.5T / 10,   5.0T / 4,

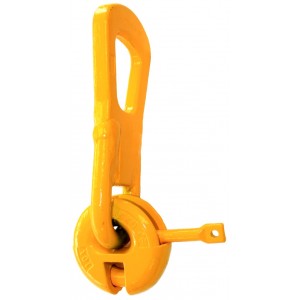

2.5T Ring Lifting Clutch Minimum Fit:  16mm Connector,  10mm Sling or Safety Hook

5.0T Ring Lifting Clutch Minimum Fit:  22mm Connector,  13mm Sling or Safety Hook

Ring Load Pin Dia :  2.5T / 13mm,  5.0T / 17mm

Please Note;

The 2.5T Ring Clutch will not fit the 1.3T Reid Eye Anchors

The 5.0T Ring Clutches will fit 7.0T Anchors but "MUST NOT" be used over 5.0T WLL
