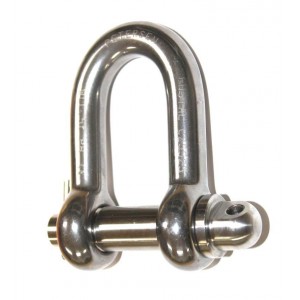

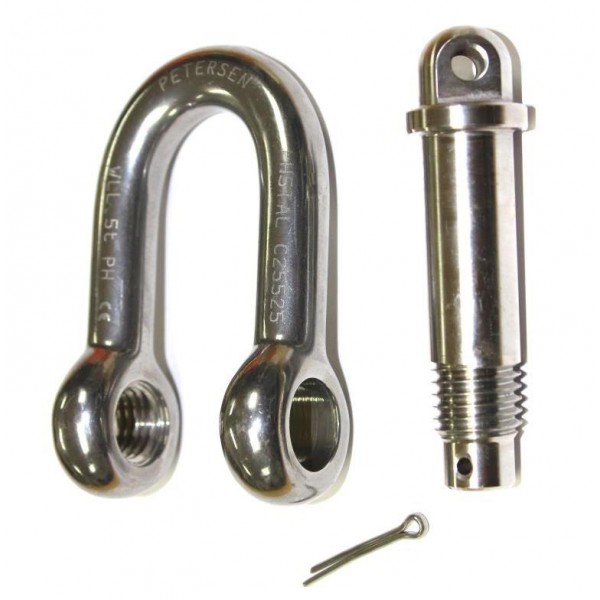

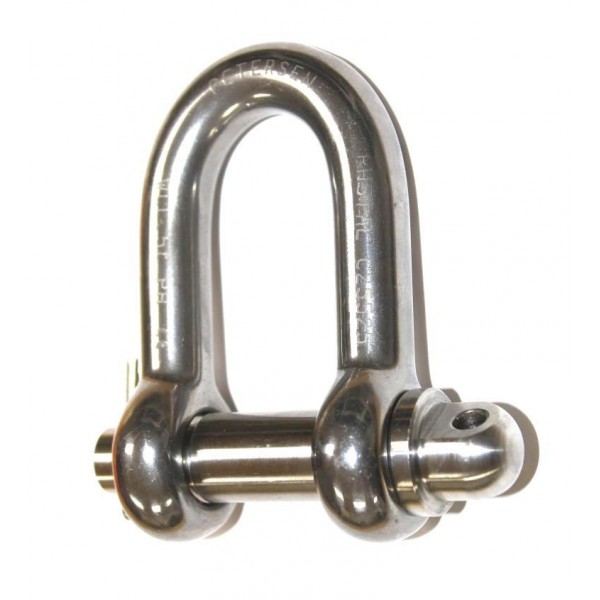

Shackle - Rated Stainless Screw Pin

Lifting Applications - Supplied by Pewag of Austria


* Drop-forged c/w Cotter Pin

* Proof loaded to 2 x WLL

* Safety Factor 6:1

* BS EN 10204.3


Markings:  CE, Identification Number, Rating, Brand,

9 in stock

$22.00 Nett

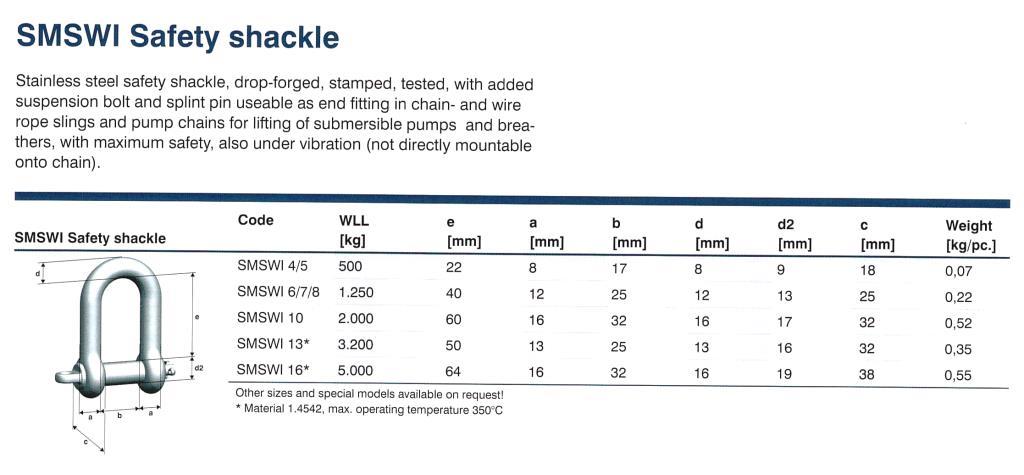

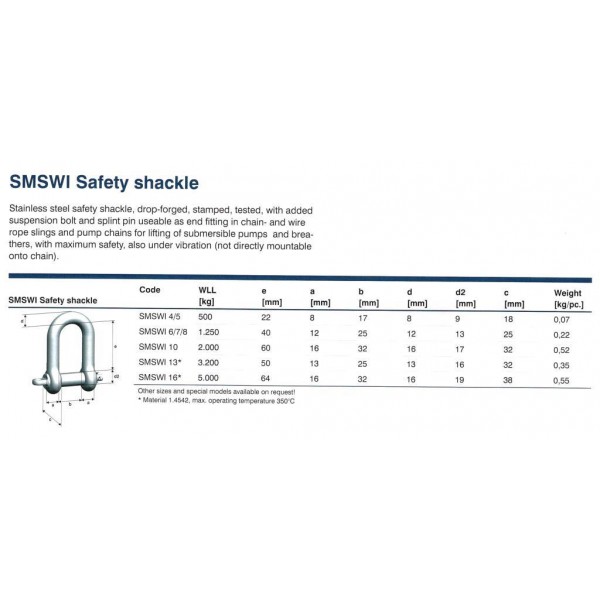

NOTE:  5.0T Dimension Options...

SMALL - 19mm Pin, 33mm Inside Width, 62mm Inside Length

STANDARD - 29mm Pin, 55mm Inside Width, 107mm Inside Length


Used as end fitting in chain- and wire rope slings and pump chains for lifting of submersible pumps and breathers, with maximum safety, also under vibration (not directly mountable onto chain).
