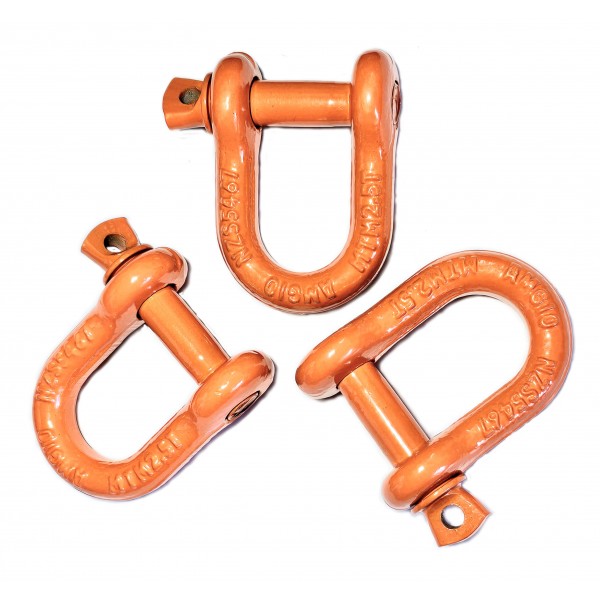

Trailer Shackle - 2.5T MTM Orange 11mm Pin

NZ Standards 5467:1993 requires safety connections for "Light Trailers" to be marked and rated.


Coating:

Hot Dipped Galvanized Then Painted Orange


Marked With:

* 2.5T MTM (Maximum Towing Mass)

* NZS5467 (NZ Standard)

* AMG 09/10 (Manufacturer & Batch No.)



Dimensions

* 11mm Pin Dia

* 24mm Inside Width

* 35mm Inside Length

356 in stock

$8.00 Nett

 Full Box Packed Weight 19.8kg


Code of Practice for Light Trailers NZ STANDARDS NZS5467:1993



Section 8.1, Page 12

Every Trailer shall have a safety connection(s).



Section 8.2,  Page 13

Safety connection (s) shall have a minimum breaking strength equal to two times the trailer Maximum Towing Mass.



Section 8.7,  Page 13

Safety connections shall be indelibly marked by the component manufacturer with their rating. The rating shall enable the minimum breaking load of the component to be identified.



NZ Standards copy purchased by HES NZ Ltd 21/04/2013 for clarification regarding "Safety Connections" and the required ratings and markings of the "Safety Chain" and "Shackle".
