G100 Oversize Ring Crane Set - SLR-AMG 2Leg Inline

For Big Hook Heavy Crane Applications.

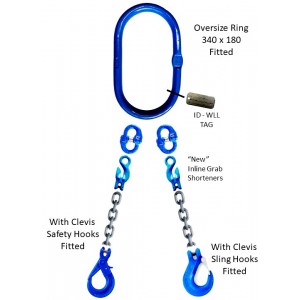

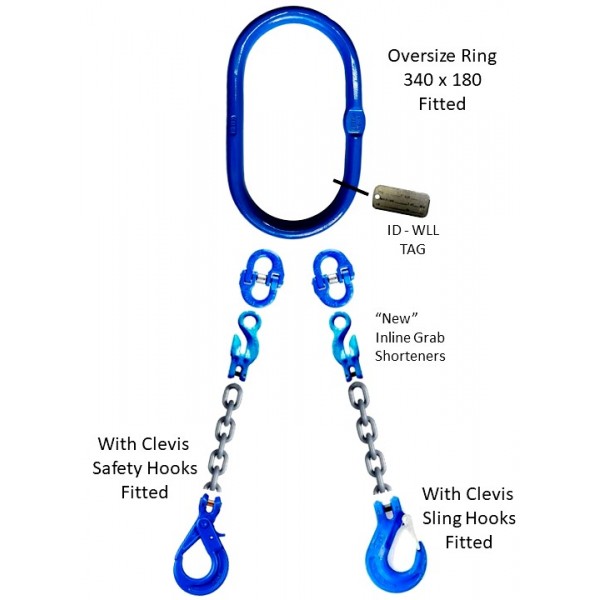

Assembled Using:

* 340x180 Oversize Ring

* New Inline Leg Shorteners

* Identification Tag

* Compliance Cert to BS EN818

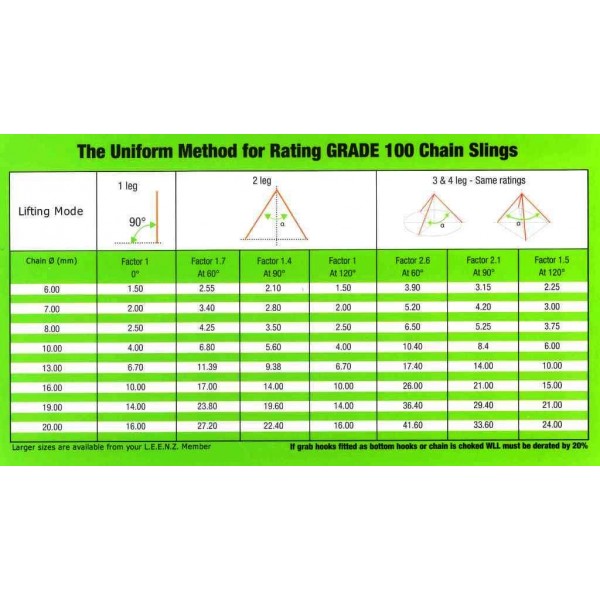

WLL at 0 to 90 Degrees

0 - 3.5T Lift - 8mm Set

0 - 5.6T Lift - 10mm Set

0 - 9.3T Lift - 13mm Set

0 -14.0T Lift - 16mm Set

0 - 22.4T Lift - 20mm Set

0 - 26.5T Lift - 22mm Set




0 in stock

$650.00 Nett

Check chain length is correct, as once we cut the chain there is "No Credit" or "Refund"

NOTE: All chain legs are cut to leg length "MINUS" one link. We only sell per "FULL" metre.

If you want a 2.5m leg then choose 3.0m length and advise us however you will be charged the 3.0m price....


Assembled Using..

SLR G100 Components from 8mm to 20mm Sets. 22mm Set is fitted with Thiele TWN1853 Inline Clevis Claw Shorteners

AMG G100 Chain from 8mm to 13mm

Thiele G100 Chain from 16mm to 22mm


All Chain Sets are assembled in accordance with the " NZ Department of Labour" code of practice, Manufacturer Recommendations and LEENZ guidelines and conforms with Standards EN818.4



All components used clearly show the manufacturer name or brand, the manufacturers identification batch testing number, the size and component rating.
