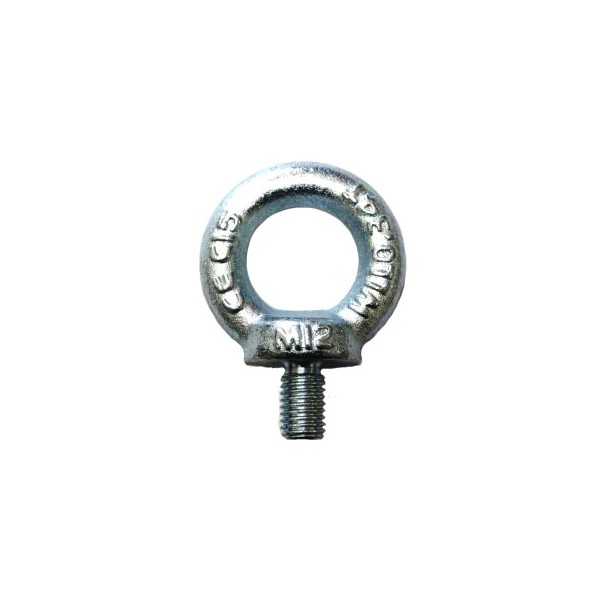

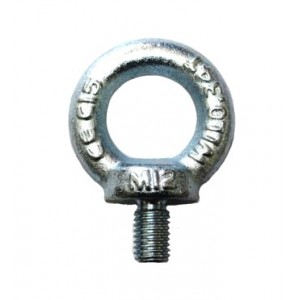

Metric Collard Eye Bolt - ZP Din580

Zinc Plated

Complies with DIN 580

Material: C15


Marked with Thread Type, Size, Rating, Batch No.

7135 in stock

$3.00 Nett

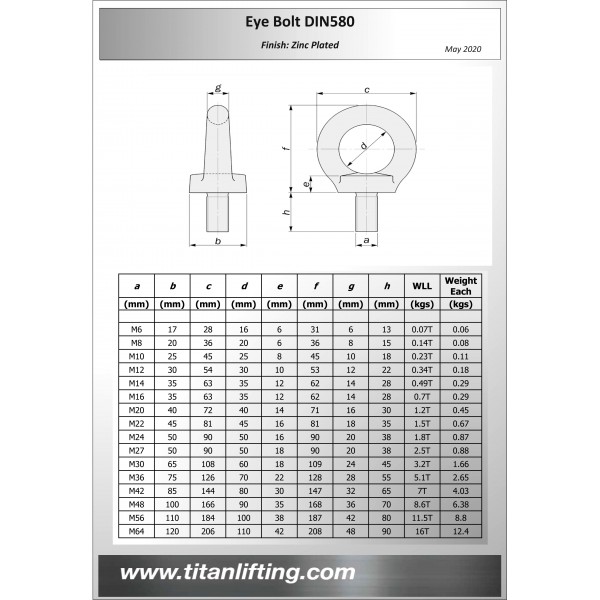

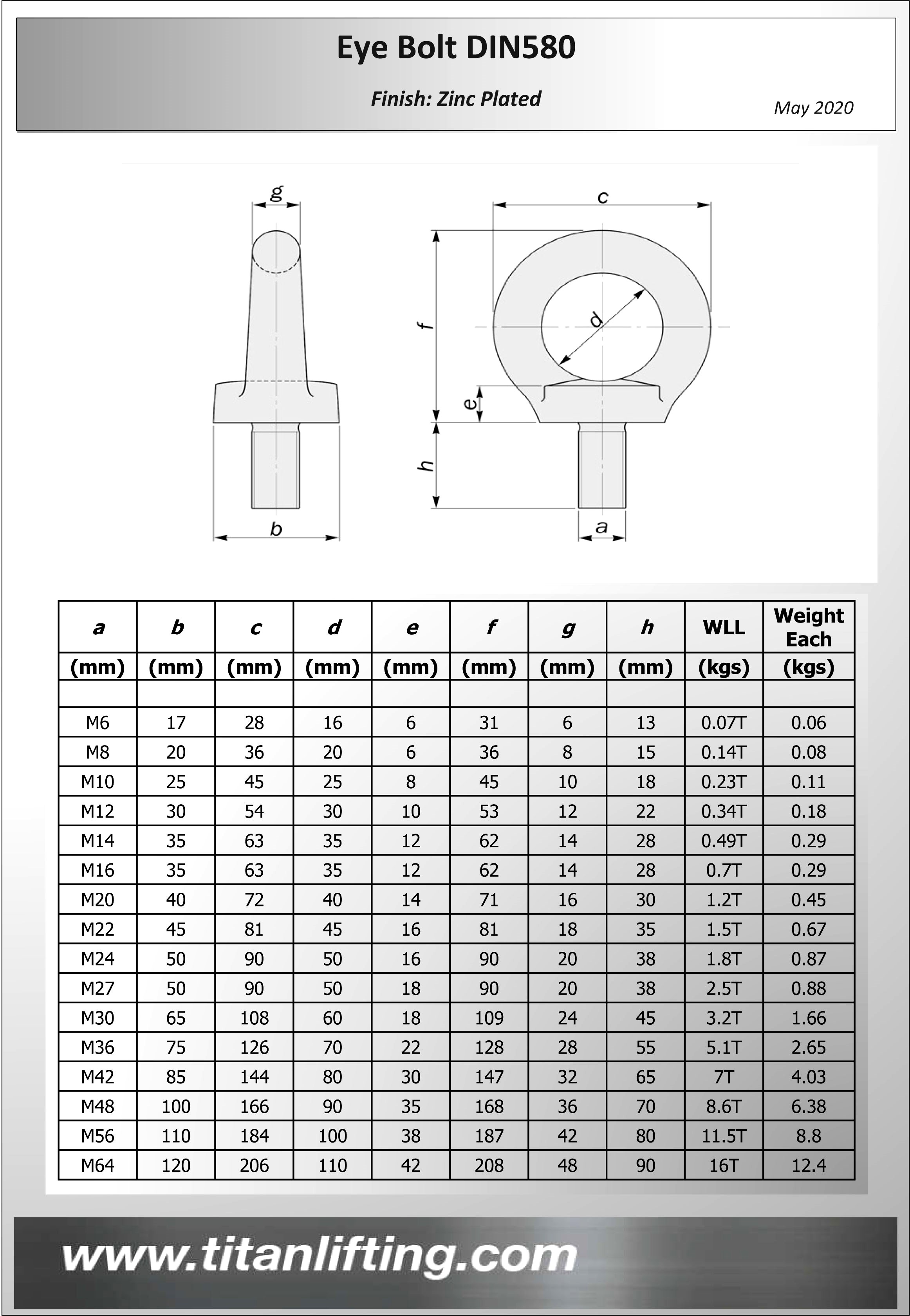

Rating / Eye Diameter

M6    0.07T (70KG) WLL - Eye 15mm ID

M8    0.14T WLL - Eye 20mm ID

M10  0.23T WLL - Eye 25mm ID

M12  0.34T WLL - Eye 30mm ID

M14  0.49T WLL - Eye 35mm ID

M16  0.70T WLL - Eye 35mm ID

M20  1.20T WLL - Eye 40mm ID

M24  1.80T WLL - Eye 50mm ID
M27  2.50T WLL - Eye 50mm ID
M30  3.20T WLL - Eye 60mm ID

M36  5.10T WLL - Eye 70mm ID
M42  7.00T WLL - Eye 80mm ID
M48  8.60T WLL - Eye 90mm ID
