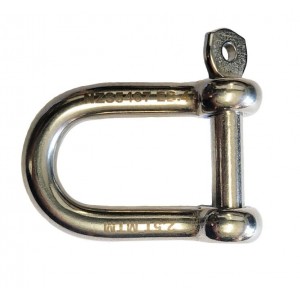

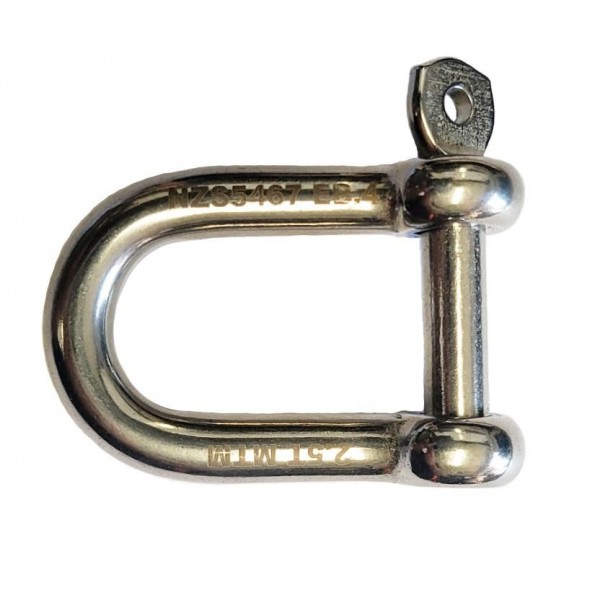

2.5T Stainless 316 STD Trailer Shackle - 10mm Pin

SPECIAL CLEARANCE - GET IN QUICK



Standard Type - Pin can be removed

NZ Standards 5467:1993 requires safety connections for "Light Trailers" to be marked and rated.



LAZER Marked With;

* 2.5T MTM (Maximum Towing Mass)

* NZS5467 (NZ Standard)

* EB.2 (Manufacturer & Batch No.)



Dimensions

* 10mm Pin

* 23mm Inside Width

* 45mm Inside Length

79 in stock

$8.00 Nett

SO124-2.5T Clear

Code of Practice for Light Trailers NZ STANDARDS NZS5467:1993

Section 8.1, Page 12

Every Trailer shall have a safety connection(s).

Section 8.2,  Page 13

Safety connection (s) shall have a minimum breaking strength equal to two times the trailer Maximum Towing Mass.

Section 8.7,  Page 13

Safety connections shall be indelibly marked by the component manufacturer with their rating. The rating shall enable the minimum breaking load of the component to be identified.



NZ Standards copy purchased by HES NZ Ltd 21/04/2013 for clarification regarding "Safety Connections" and the required ratings and markings of the "Safety Chain" and "Shackle".
